Mobile Information Terminal /PDA

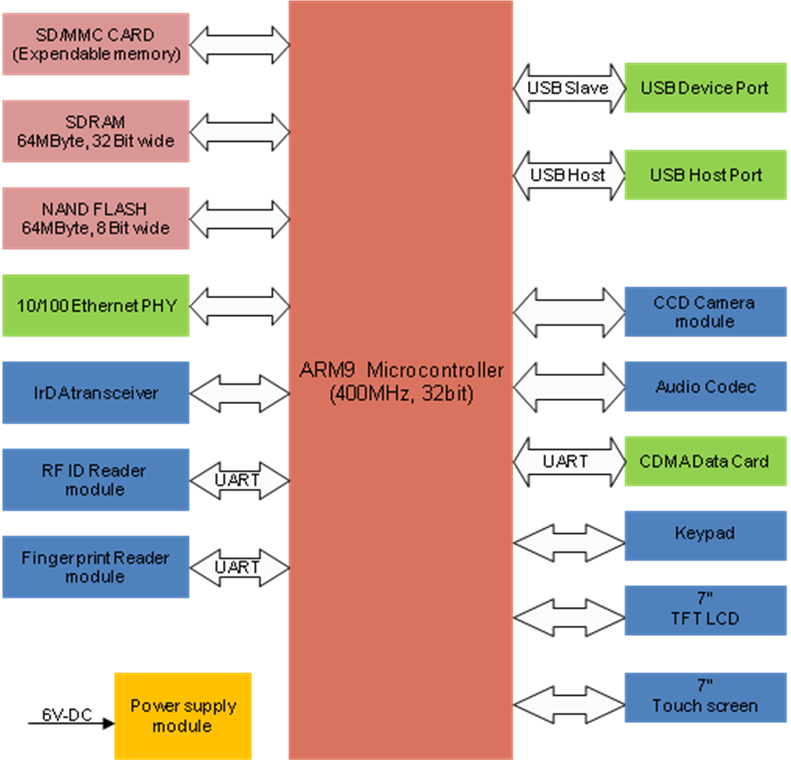

It Is an ARM9 microcontroller based Mobile information terminal/PDA which can supports applications like web screen phone, web pad, smart phone, navigation system and Fingerprint identification system



Hardware Features:

32bit ARM9 Microcontroller,  operating at 400MHz External Bus interface Operating at frequency of 133MHz 64MBtyes SDRAM 64MBytes Nand-Flash SD/MMC card interface provides access to  external memory cards 10/100 Ethernet Interface CPU built  in TFT LCD controller with  7” Color TFT LCD CPU Built in resistive Touch screen controller with  7” Touch Panel Audio Input and Output interfaces CDMA Data module interfaced to CPU via Serial interface 433MHz RFID Reader interfaces to CPU via serial interface Fingerprint Reader module Interfaced to CPU via serial interface Support for IrDA 1.0 One USB Host interface One USB Slave Interface Interface  and function specific LED indicator lights function keys:“up“,  "down“,  "left“, “right“, "confirmation", "Cancel" IO Expansion ports : SPI interface , I2C interface, GPIO Standard 20- pin JTAG debug interface External  6V DC input Optional 6V  Rechargeable battery pack with recharge circuit for handheld applications RTC Real Time Clock and large-capacity lithium battery back-up

Software Features:

.NET Framework  Development  environment Win CE 5.0 BSP provided Win CE image can be build using Win CE 5.0 platform Builder Customer can Build using embedded VC++ 4.0 Windows utility provided for boot loader and win CE image download Bootloader  support : Eboot, Nboot Driver Support: Display, Touch Screen, Ethernet, USB Host/Device, NAND/NOR Flash, SMMC Card, Serial Interface, RTC etc..
